Afbeelding van Silca Machine Quattrocode D700 D8A7049ZB

Silca Machine Quattrocode D700 D8A7049ZB

Artikelnummer: 43132

Prijzen worden weergegeven nadat u aangemeld bent.

Momenteel niet op voorraad

Houd mij op de hoogte wanneer het beschikbaar is

Vragen?

Beschrijving
PDF Documenten

Beschrijving

Silca Machine Quattrocode D700 D8A7049ZB

Features

Cuts and engraves dimple and laser keys in one single process

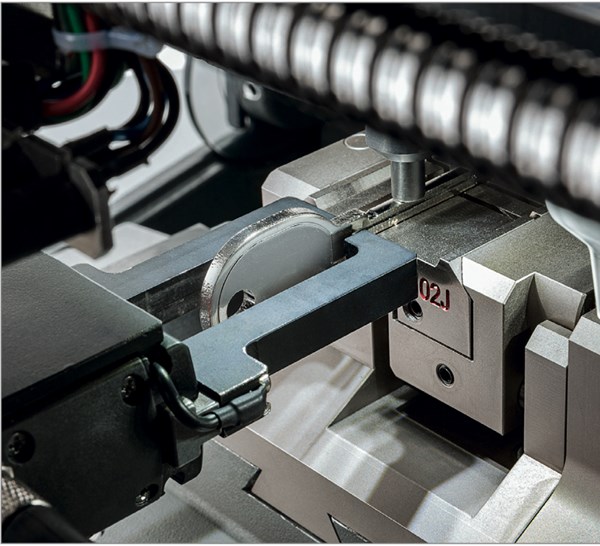

Robot arm for automatic key rotation
20% faster key cutting in comparison to Triax Pro
Fully automated key cutting process
Electronic clamp opening and closing
Integrated engraving
Automatic tracer positioning
Automatic cutter recognition using RFID
Reduce downtime

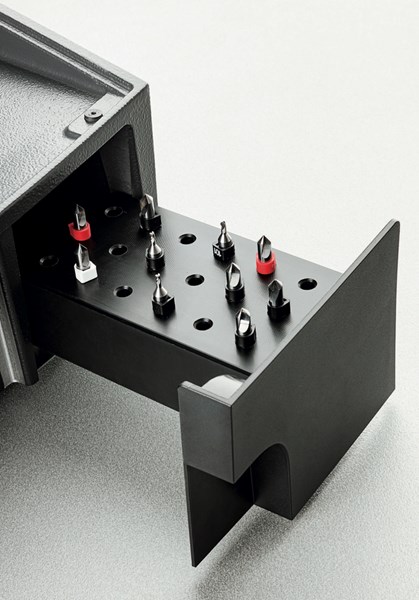

Easy cutter management
User-friendly software interface
Professional display
Full connectivity
Cleaner, safer and more practical working area
Many patent pending solutions

Technical Data

Electricity supply: 100-240V - 50/60Hz
Cutter motor: 48VDC
Engraving motor: 24VDC
Key cutter: Cutter in hard metal
Engraving cutters: Cutter in hard metal
Tool speed: Key cutter: 25000 rpm - Engraving cutter: 22000 rpm
Clamping trolley movements: on 3 axes with ball screws activated by step motors on ground roller runners

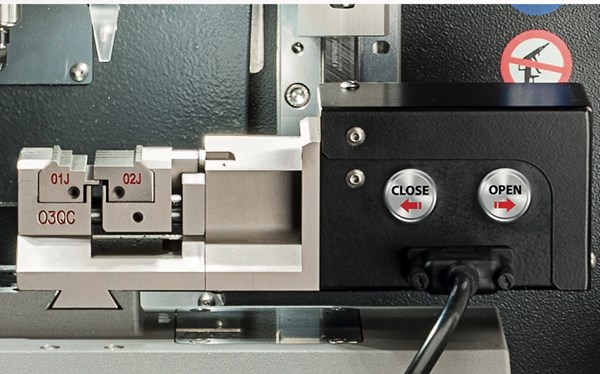

Electronic clamp 03QC: Removeable and equipped with interchangeable jaws
Robot movement: On axis with ball screws activated by step motors on ground roller runners.
Runs: With clamp: axis X 80mm, axis Y 77mm, axis Z 40mm
Max dimensions: Height 680 mm, Width 502 mm, Depth 740 mm

Weight: 76,5 Kg
